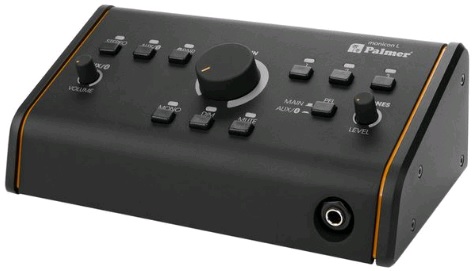

Palmer Monicon L G2
Controlador de volume analógico activo ou passivo. Selector de 3 fontes: 1) XLR/Jack TRS combo 2) auxiliar em minijack stereo/2xRCA e 3) Bluetooth. Selector de 3 saídas com 2 output stereo 2x XLR + 1 saída mono XLR. Saída de auscultadores com controlo de volume independente, comutador stereo/mono, mute e DIM. Estrutura em metal robusta. Dimensão: 218 x 76 x 124 mm. Peso: 1 Kg.
Categoria do produto :
Controladores de MonitoresReferência Interna :
A/012023Specifications
General
TypePassiveMaterialAluminium, Steel sheetFrequency response (±0.2 dB, rel. Avg)20 - 20,000 HzColourBlack
Bluetooth®
Bluetooth® versionBluetooth® 5.3FeaturesAudio Streaming (A2DP)Supported audio codecsSBC
Inputs
Input signal typeBalanced & Unbalanced (parallel)Number of balanced line inputs2Balanced Line-In connector typeXLR combo socketNumber of unbalanced line inputs2Unbalanced Line-In connector type3.5 mm Jack TRS female, 2 x RCA female (Stereo)
Line input performance
Nom. input clipping, unbalanced (< 1% THD, 1 kHz, unity)15 dBuNom. input clipping, balanced (< 1% THD, 1 kHz, unity)20 dBuInput impedance (balanced)20 kΩInput impedance (unbalanced)10 kΩTHD+N≤ 0.001 % (+4 dBu)Min. CMRR (0 dB below clip, 1 kHz, unity)55 dBMin. SNR (< 1% THD, 1 kHz, unity, A-weighted)112 dB
Outputs
Output signal typeHeadphone, BalancedNumber of balanced line outputs5Balanced line outputs connector typeXLR 3-pole maleNumber of Headphone outs1Headphone out connector type6.3 mm Jack TRS femaleMin. headphone impedance10 ΩMax. headphone out power100 mW
Line output performance
Max. output level (<1 % THD, 20 Hz - 20 kHz)20 dBuBalanced output impedance (1 kHz)600 ΩDynamic range (AES17)> 115 dB
Mains operation
Power supply typeExternal switched-mode power supply (SMPS)
Environmental
Ambient temperature0 - 40 °CMaximum air humidity (non-condensing)80 %
Dimensions & weight
Width218 mmHeight76 mmDepth124 mmWeight910 gCrosstalk-79 dB
