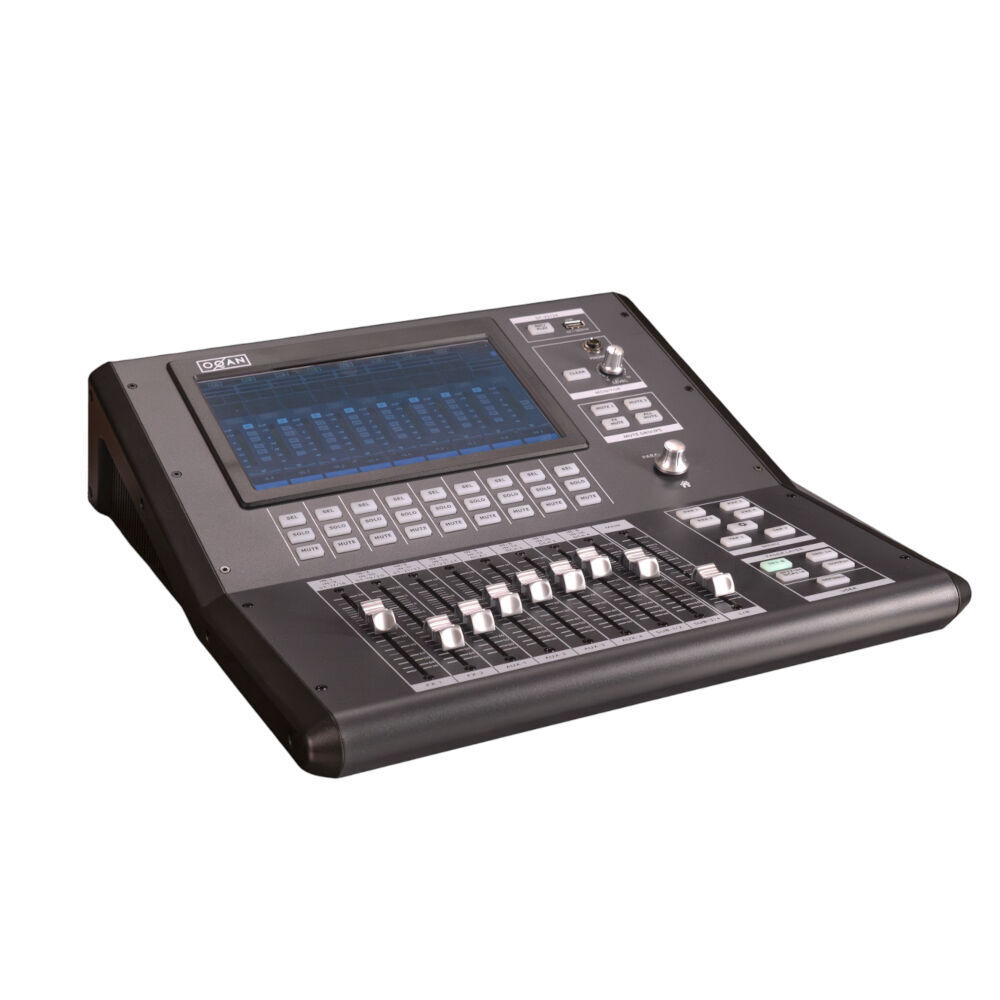

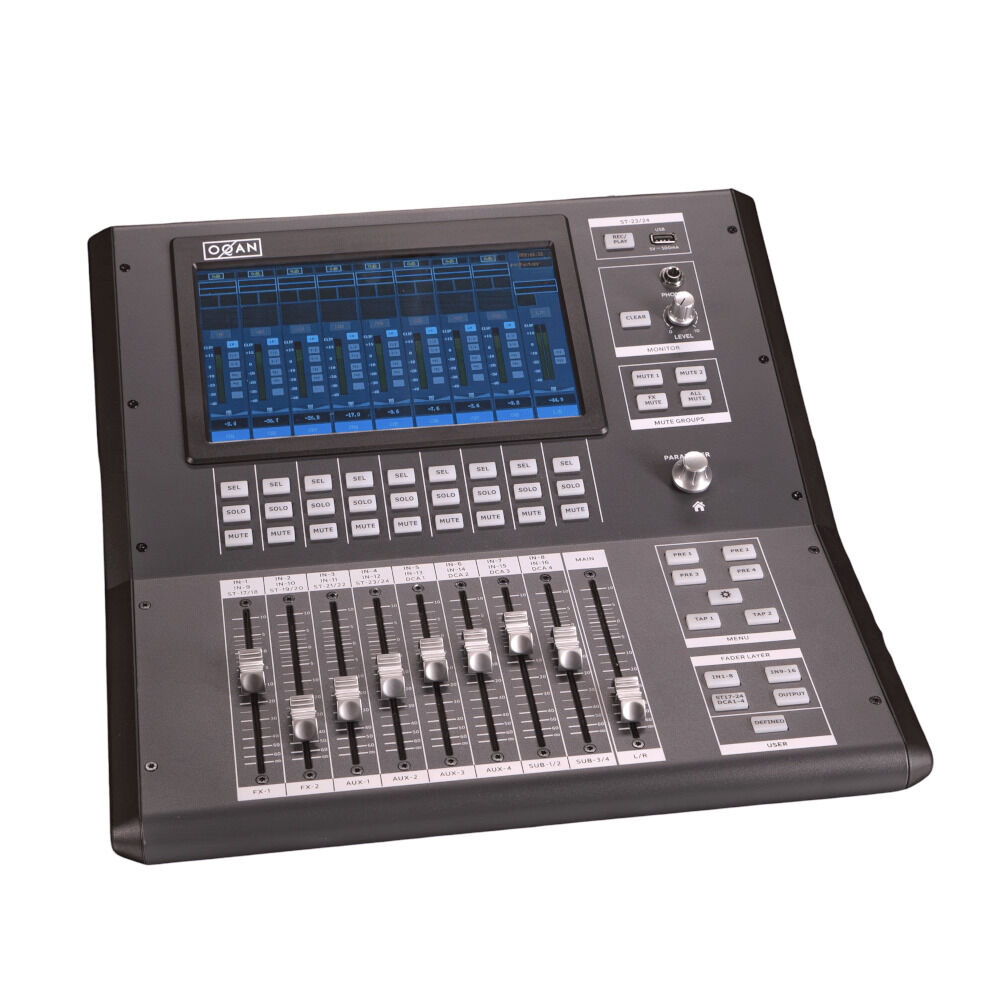

The new Oqan Q24D PRO is a compact and powerful digital mixing console, designed to deliver professional performance with quick and intuitive operation. With 24 input channels, motorised faders and an HD touchscreen, it is the ideal solution for live performances, recordings or permanent installations.
Its 32-bit / 96kHz SHARC DSP architecture guarantees impeccable sound quality, with wide dynamic range and mixing precision. It features 9 motorised 100 mm faders arranged in 4 layers plus an additional user-programmable layer, offering total control over every channel and scene.

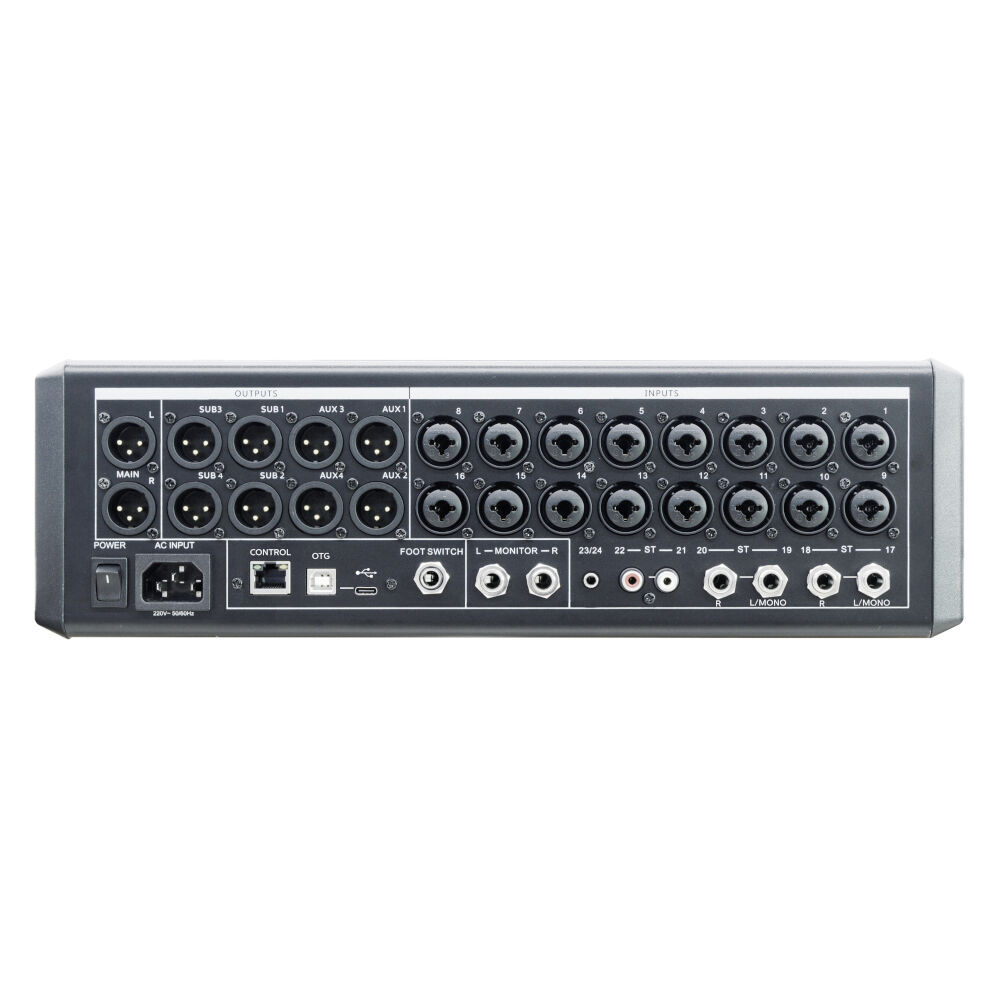

It includes 16 microphone inputs, 4 stereo inputs and 4 hybrid inputs (RCA, 3.5 mm jack, Bluetooth, USB/OTG and flash drive), as well as 4 SUB outputs, 4 AUX outputs, a main stereo output, a monitor output and two stereo effects processors, with 16 presets available on each.
The stereo Bluetooth input allows audio to be played directly from mobile devices or tablets with Bluetooth V5.0 compatibility (also compatible with V4.2 and V2.1+EDR), with integrated volume control.
Its system of 4 programmable DCA channels and dynamic controls (EQ, compressor, noise gate, low cut, +48V phantom power) allow for professional adjustment in any environment.
The Q24D allows you to save and recall up to 20 internal scenes, with four physical shortcuts on the panel for quick changes during a performance or work session. It also offers remote control via a Bluetooth BLE app and real-time recording directly to a USB flash drive, without the need for a computer. It also allows you to play back audio files and create backups from the same storage device, and features customisable password protection to ensure secure operation.
Key features:
- 24 input channels (16 mic + 4 stereo + 4 hybrid RCA/USB/Bluetooth)
- Stereo Bluetooth audio input (V5.0, compatible with V4.2 and V2.1+EDR)
- 32-bit / 96kHz SHARC DSP with 24-bit AD/DA conversion
- 9 x 100 mm motorised faders (4 layers + 1 programmable)
- 9” HD touchscreen
- 20 internal scenes and 4 physical shortcuts
- 2 stereo effects processors with 16 presets available on each
- Real-time recording directly to USB flash drive
- Remote control via Bluetooth BLE app
- 14 internal buses and 4 programmable DCA channels
- Customisable password protection
- Dimensions and weight: 380 × 429 × 109 mm / 6,15kg
- Included: Power cable, User manual (USB stick)
