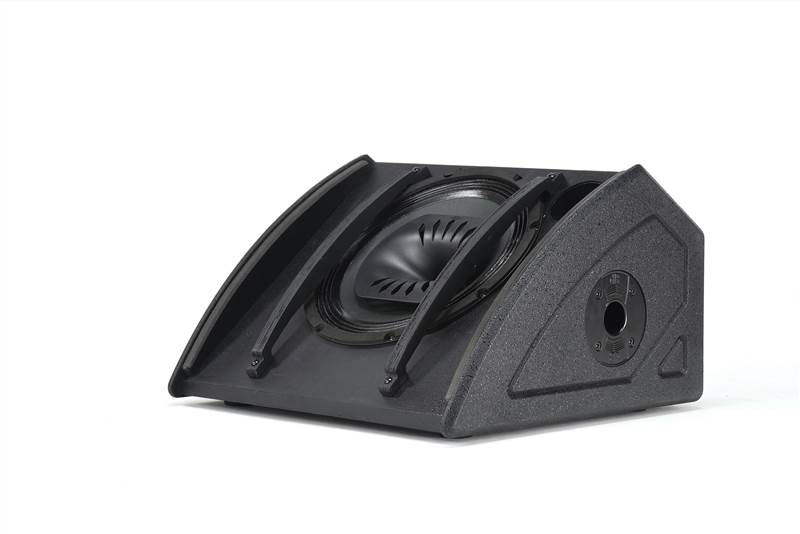

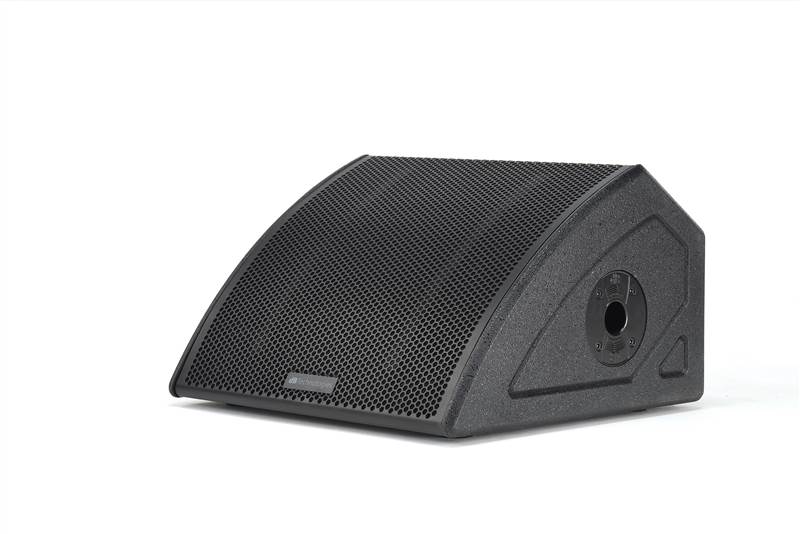

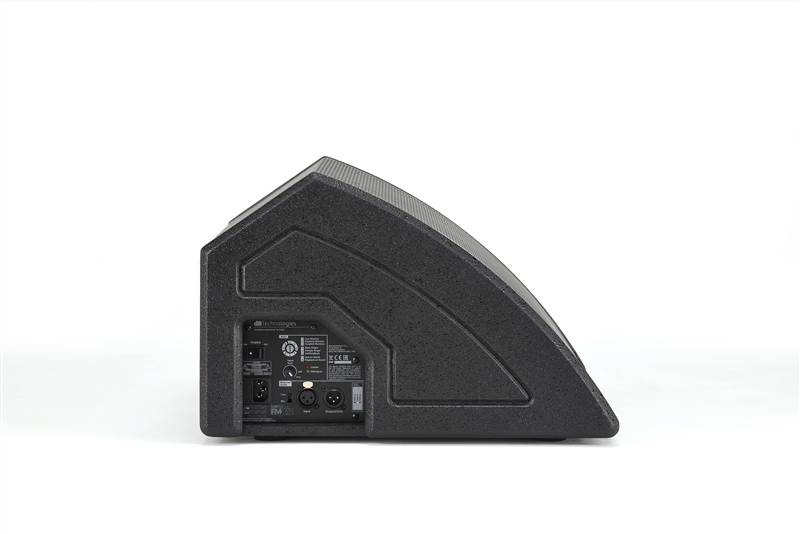

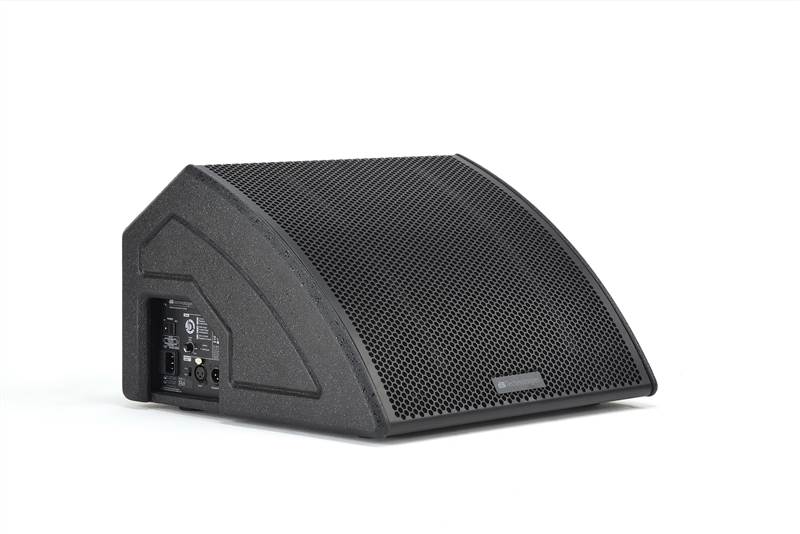

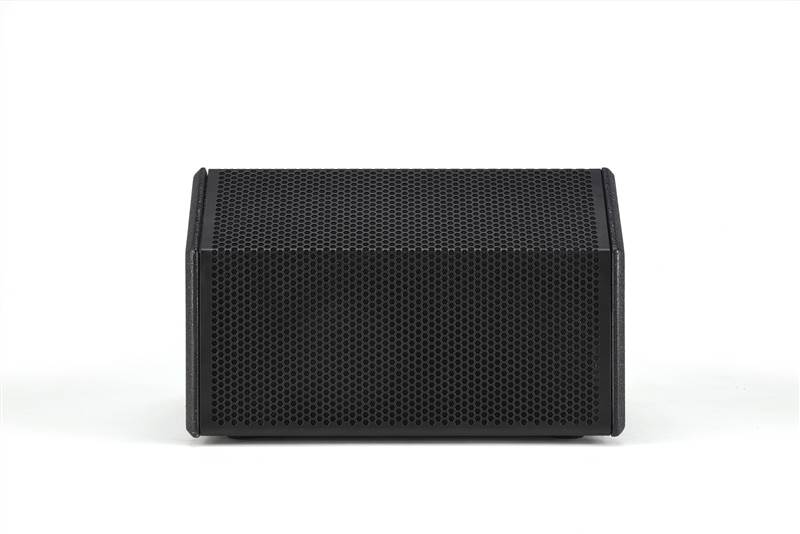

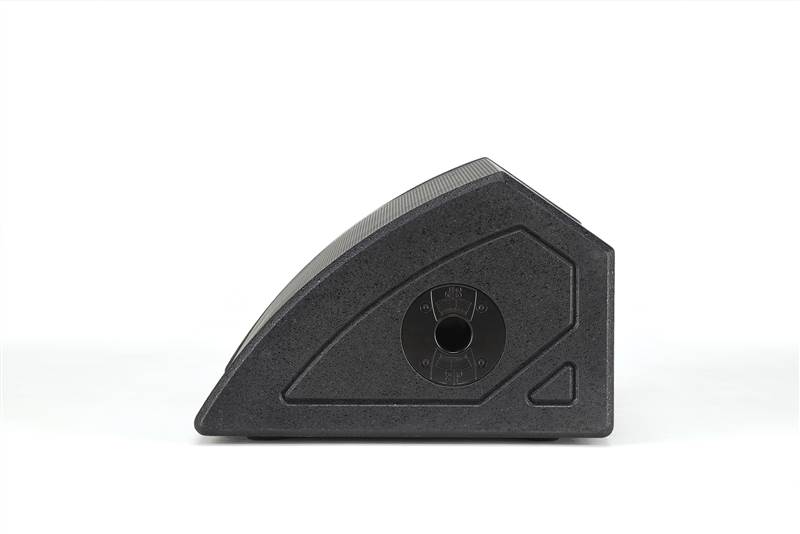

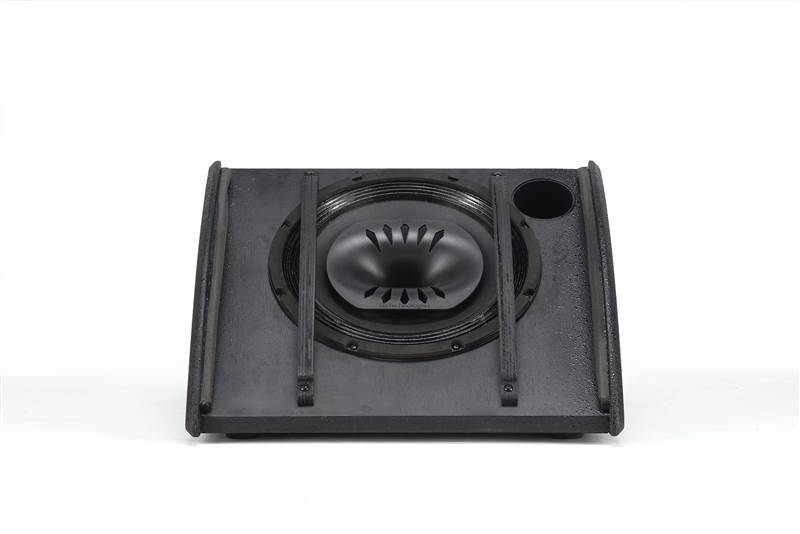

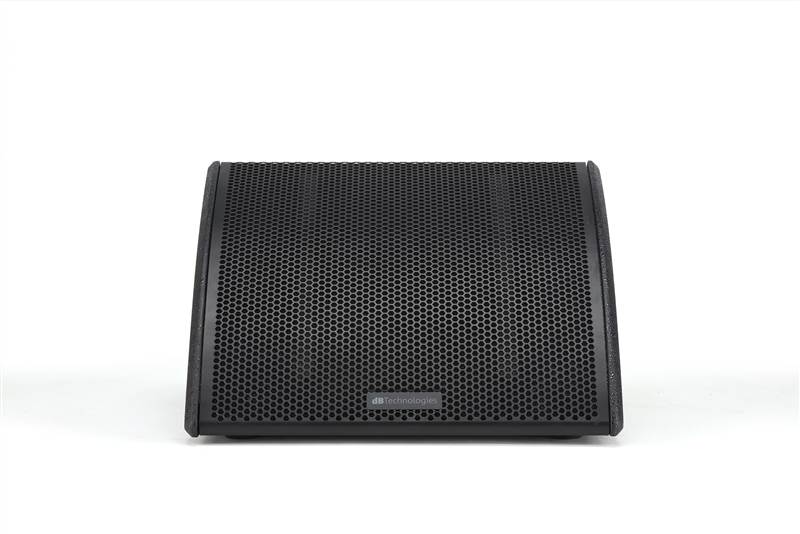

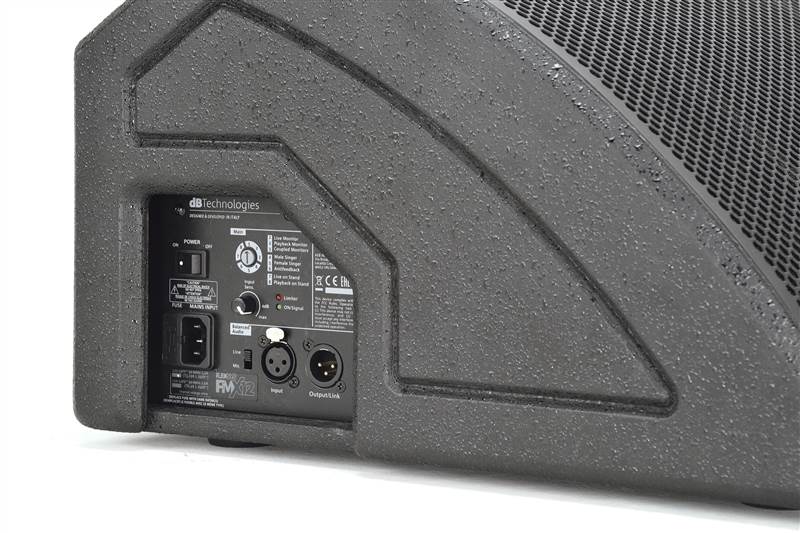

dB Technologies Flexsys FMX12

Active 2-Way Coaxial Stage Monitor

• Equipped with: 12" Woofer and 1" tweeter
• Frequency range (-10 dB): 52 - 19,000 Hz
• Peak SPL: 128 dB
• Dispersion angle: 60° x 90°
• Class D amplifiers
• Peak power: 1200 W
• One integrated handle on the bottom
• 36 mm speaker stand flange mount
• Dimensions (W x H x D): 465 x 297 x 444 mm
• Weight: 13.9 kg
• Colour: Black

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
